BAOFENG UV-5R Dual Band Radio 3800mAH Battery 5R Ham Walkie Talkie

Sale priceC$59.99
In stock



    • Frequency Range: 136-174 / 400-480MHz. Range:1-5KM. Dual-Band Display, Dual Freq. Display, Dual-Standby.

    • Output Power: 4 /1Watts. 128 Channels50 CTCSS and 104 CDCSS. Built-in VOX Function.

    • 1750Hz Burst Tone. FM Radio (65.0MHz-108.0MHz). LED Flashlight. Large LCD Display. High /Low RF Power Switchable.

    • 25KHz/12.5KHz Switchable. Emergency Alert. Low Battery Alert.

    • Battery Saver, Time-out Timer, Keypad Lock, Monitor Channel, Channel Step: 2.5/5/6.25/10/12.5/25KHz, ROGER SET




Baofeng UV-5R 3800mAh Battery 5W Walkie Talkie Dual Band Portable Radio UHF 400-520MHz VHF 136-174MHz Two Way Ham Radio

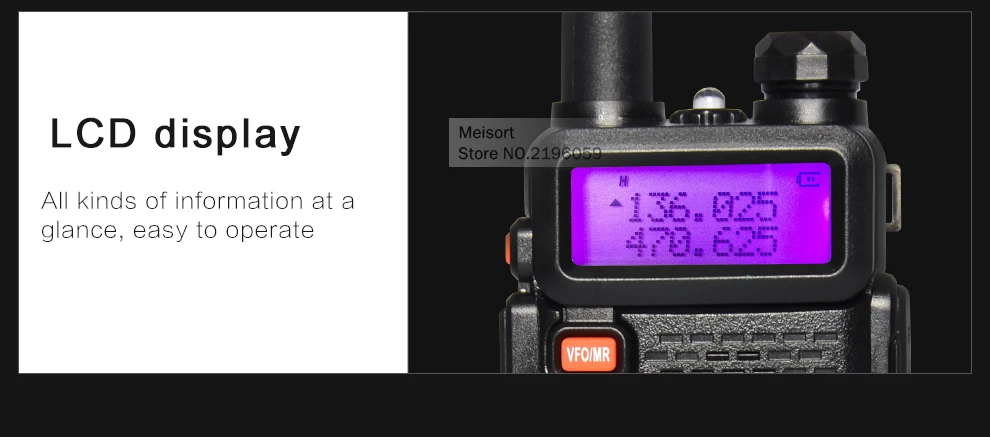

    • Dual-band handheld transceiver with display function menu on the display “LED”

    • Commercial FM radio receiver (65MHz-108MHz)

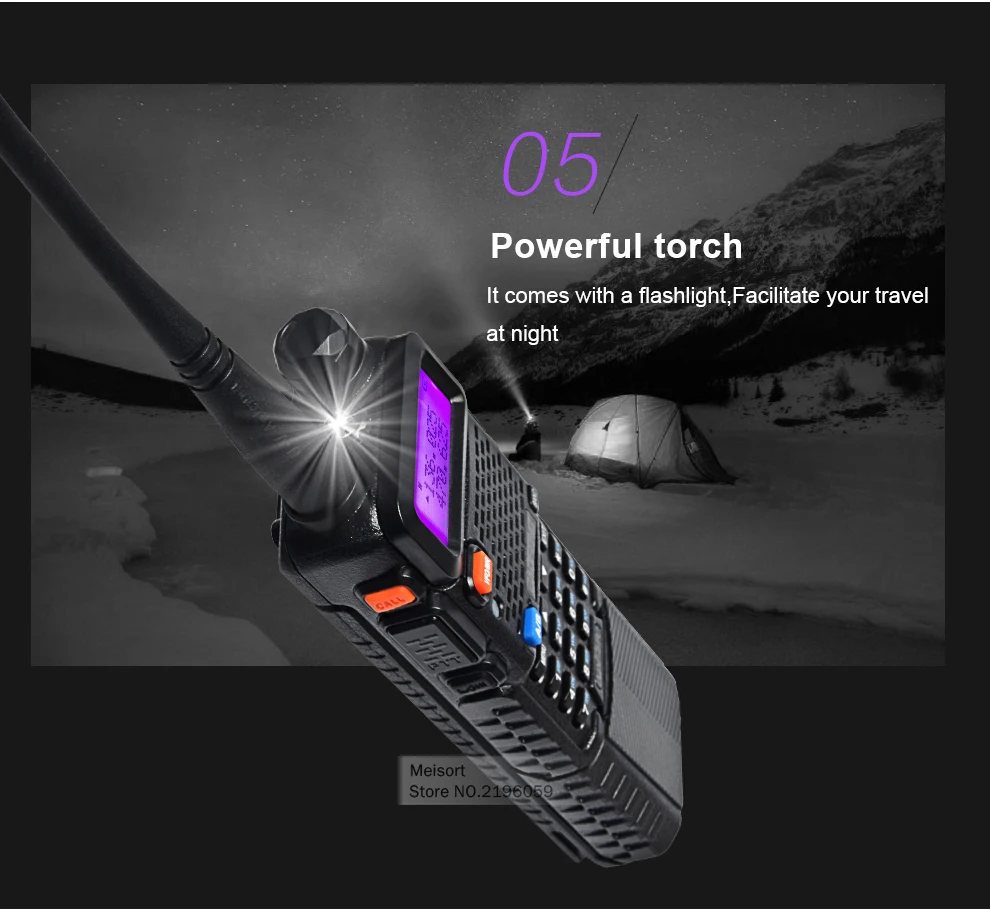

    • Built-in LED flashlight

    • DTMF encoded

    • Built-in RX CTCSS/DCS scan

    • Function VOX

    • Alarm function

    • Broadband/narrowband selectable

    • Function beep on the keyboard

    • Dual Watch/dual Reception

    • Crossband reception/transmission

    • Function OFFSET

    • Tone end of transmission

    • Battery saving function SAVE

    • Programmable by PC

    • Built-in key lock


Technical Parameters:

Frequency range 65-108Mhz(only for FM)

VHF:136-174Mhz(Rx/Tx) UHF:400-520(Rx/Tx)

Memory channels Up to 128 channels
Frequency stability 2.5ppm
Frequency step 2.5kHz/5kHz/6.25kHz/10kHz/12.5kHz/25kHz
Antenna impedance 50Ω
Operating temperature -20°C to +60°C
Supply voltage Rechargeable Lithium-Ion mAh7.4V/3800
Consumption in standby ≤75mA
Consumption in reception 380mA
Consumption in transmission ≤1.4A
Mode of operation Simplex or semi-duplex
Duty cycle 03/03/54 min.(Rx/Tx/Standby)
Dimensions 58mm*110mm*32mm
Weight 130g(approximate)
RF power 4W/1W
Type of modulation FM
Emission class 16K&F3E/11K&F3E(W/N)
Maximum deviation ≤±5kHz/≤±2.5kHz(W/N)
Spurious emissions <-60dB
Receiver sensitivity 0.2μV(at 12dB SINAD)
Intermodulation 60dB

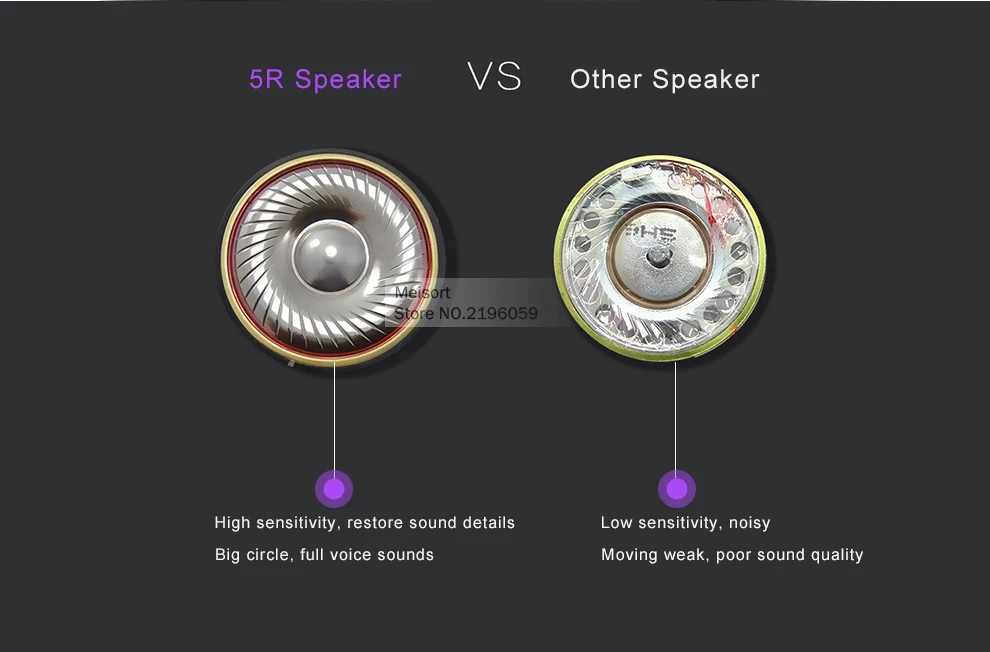

Audio output 1000mW
Adjacent channel selectivity 65/60dB
Note:All specification shown are subject to change without notice

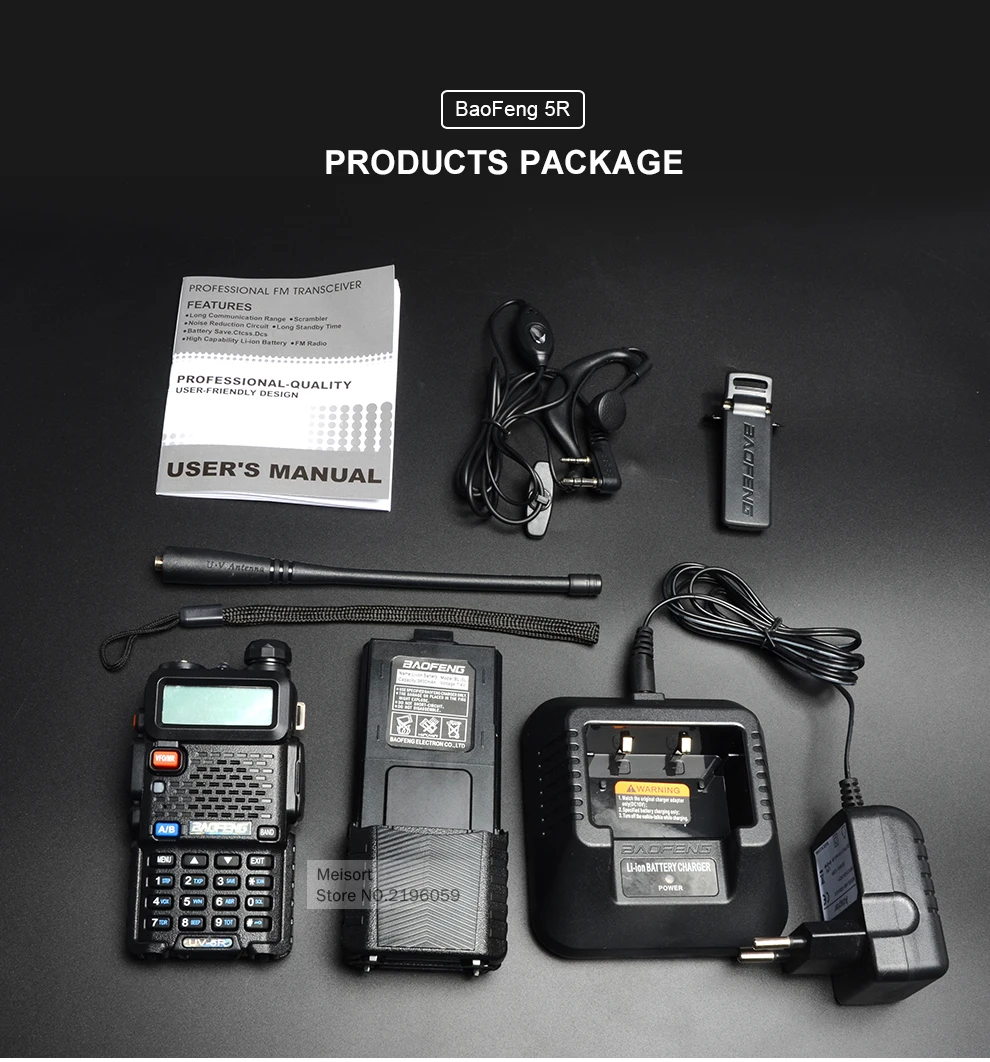

Package Included:

1 x UV-5R (VHF136-174 & UHF 400-520Mhz)
1 x 7.4V 3800mah Li-ion Battery Pack
1 x dual band Antenna
1 x Belt Clip
1 X ear hook earphone
1 x ENG Manual
1 x Desktop Charger ( 100V ~ 240V  US/EU/UK/AU plug )
